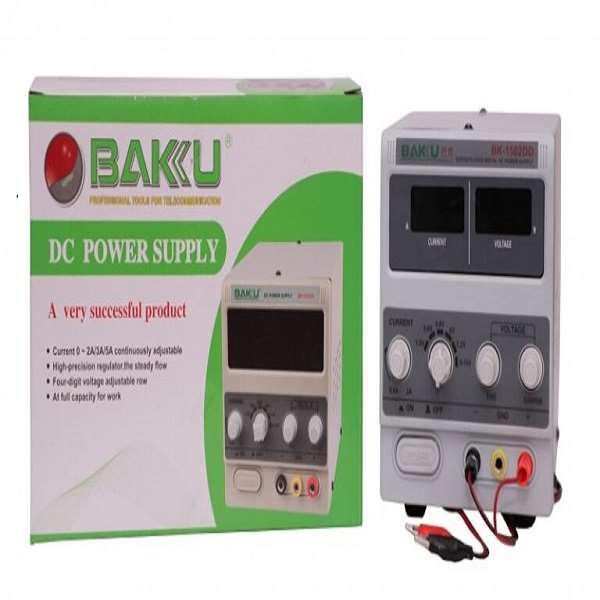

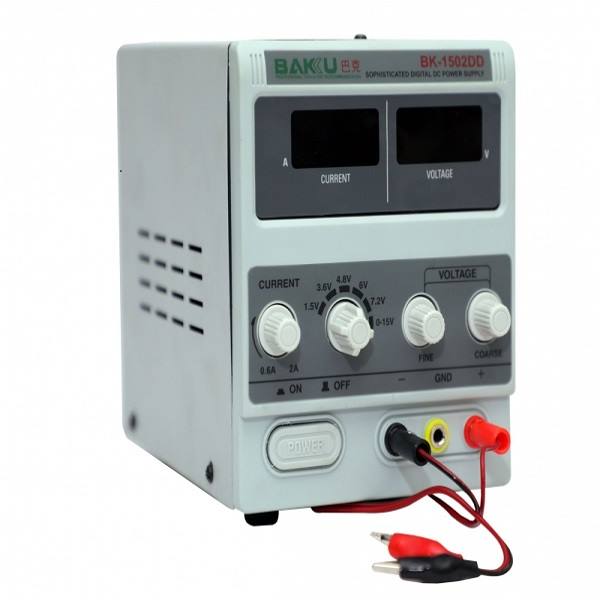

Baku BK-1502DD Digital DC Power Supply


Spread with love


Baku BK-1502DD Digital DC Power Supply

1. Maintenance of communications-specific power,the power supply is designed for mobile phones and other communications equipment.

2. Designed for maintenance,it uses the most advanced short-cuircuit protection resume.

3. The protection of the rapid rate of,And a sound and light alam,after treating the unshorting.To be ruled out after in 1 second automatically resume output.

4. Voltage measurement interface.Can be replaced by precise digital voltmeter measurements voltages DC.

supply voltage 220V/50HZ
Work conditions -10°C~80°C
Storage conditions -20°C~80°C
Avr working state
Output voltage DC 0-15V 1.5V,3.6V,4.8V,6V,7.2V
Voltage stability ≤ 0.01% 2MV
Recovery time ≤ 100US
Ripple noise ≤ 1MVRMS
temperature coefficient ≤ 300PPM/°C
Current state
Output power ≤ 0.6A-2.1A
Load changes in stability ≤ 0.2% 3MA
Ripple and noise ≤ 3mArms
